Vacuum Trucks

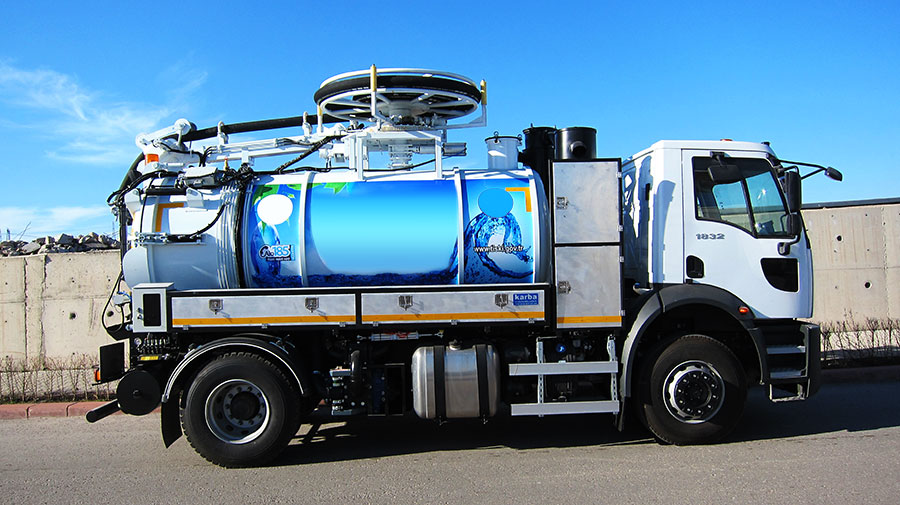

Cassette Boom Vacuum Trucks
They are equipment specially designed to suck and transfer waste water and wastes accumulated in phoseptic pits and channels. The air in the tank is vacuumed, the wastewater is sucked into the tank and the compressed air is fed into the tank, and the waste water is discharged by using the vacuum pump. The vacuum pump is powered by the power take-off which is coupled to the vehicle gearbox, and is controlled by a button in the driver's cab
Our equipment is designed in accordance with the needs of our customers and is produced in the best quality and the most suitable features to meet the needs.
Download the Brochure
Cassette Boom Vacuum Trucks KRB - VKB07
| Vehicle Carrying Capacity | At least 18000 kg |
| Tank Capacity | 7000 Lt |
| Tank Material | Carbon steel |
| Vacuum Pump Capacity | 1500-4000 m3/Hour |
| Opening the Back Cover | Hydraulic |
| Rear Cover Locks | Mechanics / Hydraulics |
| Valves | 4" Mechanical suction valve 6"" pneumatic discharge |
| Cabinets | On both sides of the tank along the tank |
| Tank Lifting | Hydraulic |
| Suction boom | 270° Rotable 4 "-5" -6 "15 m hose (1200 mm extended suction arm capable of at least 180° rotation) |
-
Standard Accessories
-
Optional Accessories
Cassette Boom Vacuum Trucks KRB - VKB12
| Vehicle Carrying Capacity | At least 25000 kg |
| Tank Capacity | 12000 Lt |
| Tank Material | Carbon steel |
| Vacuum Pump Capacity | 1500-6500 m3/Hour |
| Opening the Back Cover | Hydraulic |
| Rear Cover Locks | Mechanics / Hydraulics |
| Valves | 4" Mechanical suction valve 6"" pneumatic discharge |
| Cabinets | On both sides of the tank along the tank |
| Tank Lifting | Hydraulic |
| Suction boom | 270° Rotable 4 "-5" -6 "15 m hose (1200 mm extended suction arm capable of at least 180° rotation) |
-
Standard Accessories
-
Optional Accessories
